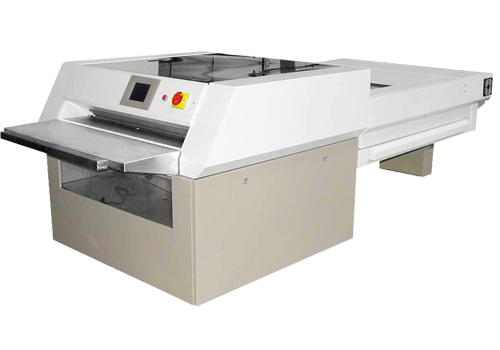

VISIO

FEATURES

  • Washout and pre-dryer section
  • Touch screen controller of each working step
  • Wash-out carried out by two orbital brushes
  • Removal of water surplus via a sponge roller
  • Sticky plate for polyester plates on request
  • Filtration section for digital plates with cylindrical brush

Optional:

  • Tunnel dryer with post-exposure sections (length: 163,5 cms)
  • Exposer under the tunnel
  560 780 920
Max plate size (mm) 520 780 920
Max plate size (inches) 20'' 30'' 36''
UVA lamps (with TUNNEL)  4x40W L. 1200 4x40W L. 1200  4x60W L. 1200
UVA lamps (with EXPOSER) 12x40W L. 900 16x60W L. 1200 21x80W L. 1500
Tank capacity (l) 45 80 110
Wattage with tunnel (kW) 10,5 11,5 13,5
Wattage with exposer (kW) 11,7 13,2 15,5
Wattage (kW) 10 11 13
Electrical Supply 230V (3PH+GND) 60Hz
400V (3PH+N+GND) 50Hz
Washout heater (W) 2x2000 2x2000 2x2000
Dryer heater (kW) 4 6 6
Overall size
(LxWxH) (cm)
128x331x110 149x331x110  163x331x110
Weight (kgs)  400 480 700



Letterpress

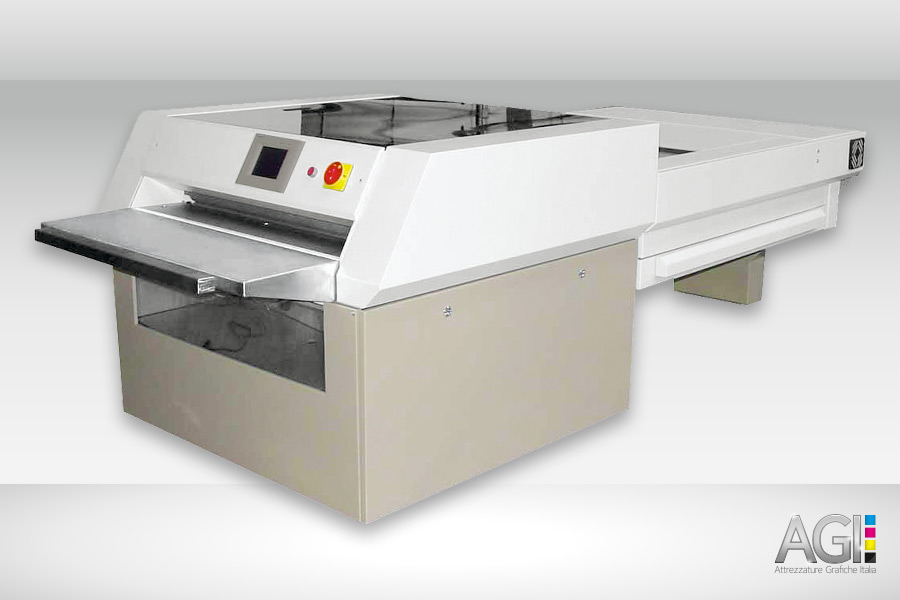

Visio 920
Letterpress

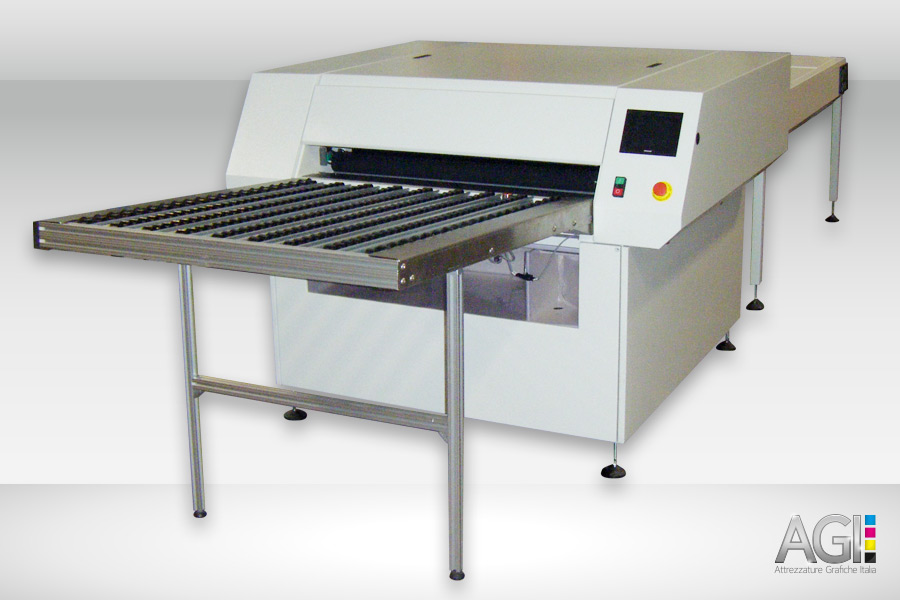

Visio 780
