COMBI FLEXO

CARATTERISTICHE

  • Simultaneous processing system of the whole plate surface
  • Pre-exposure and main exposure with pump and vacuum gauge
  • Fastening section on a table with permanent sticky plate and automatic overturning
  • Washout with the adjustment of brushes height through PLC and with an orbital and alternating movement
  • Independent movement of the table
  • Final cleaning section with one rotating cylindrical brush
  • Drying section with 2 independent drawers
  • Post-exposure and finishing section with leds informing the state of lamps
  • Separate suction system for washout/dryer section and post-exposure/finishing section
  • 9 channel touch screen controller, for each thickness and relief required: pre-exp. time, main exposure, washout time, quantity of automatic regeneration, post- exposure, finishing, 2 times for each of the 2 drawers
  • Automatic solvent charge and discharge and tanks level control
  • Solvent and dryer section temperature control
  27/35 30/40 36/47 42/60
Exposure size (mm) 700x900 780x1067 920x1200 1070x1530
Exposure size (inches) 27''x35'' 31''x42'' 36''x47'' 42''x60''
Quantity developer in the tank (l) 90 90 120 140
UVA exposure lamps 16x60W
10R L.1200
16x60W
10R L.1200
18x80W
10R L.1500
-
UVA post-exposure lamps 14x60W
10R L.1200
14x60W
10R L.1200
17x80W
10R L.1500
28x80W
10R L.1500
UVC lamps 13x36W
L.1200
13x36W
L.1200
16x60W
L.1500
27x60W
L.1500
Max thickness processable (mm) 7 7 7 7
Wattage (kW)  15 15 21 21
Electrical supply 230V 3PH+GND 60Hz
400V 3PH+N+GND 50Hz
Overall size
(LxWxH) (cm)
290x180x135 290x180x135 320x215x135 370x241x135



Combi Flexo

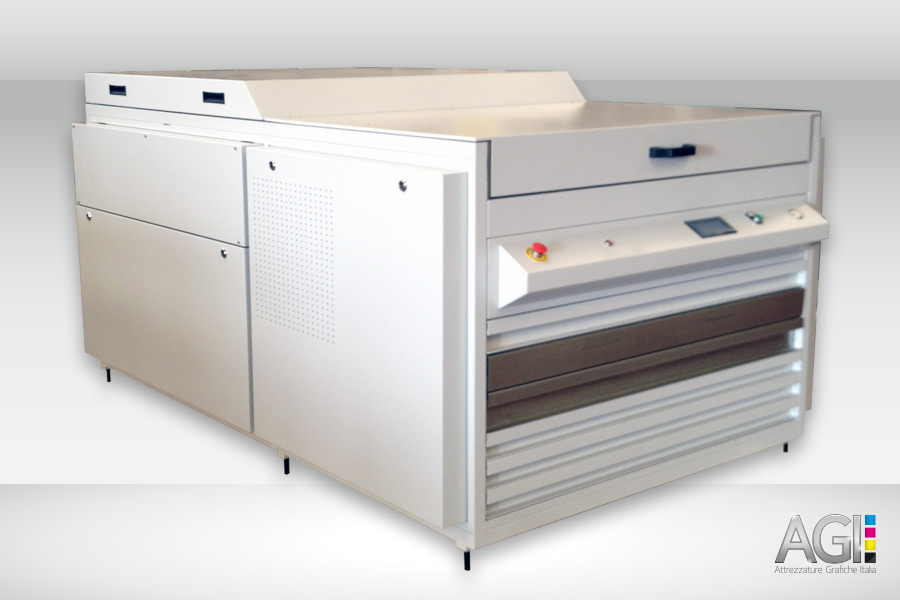

Combi Flexo 27/35
Combi Flexo

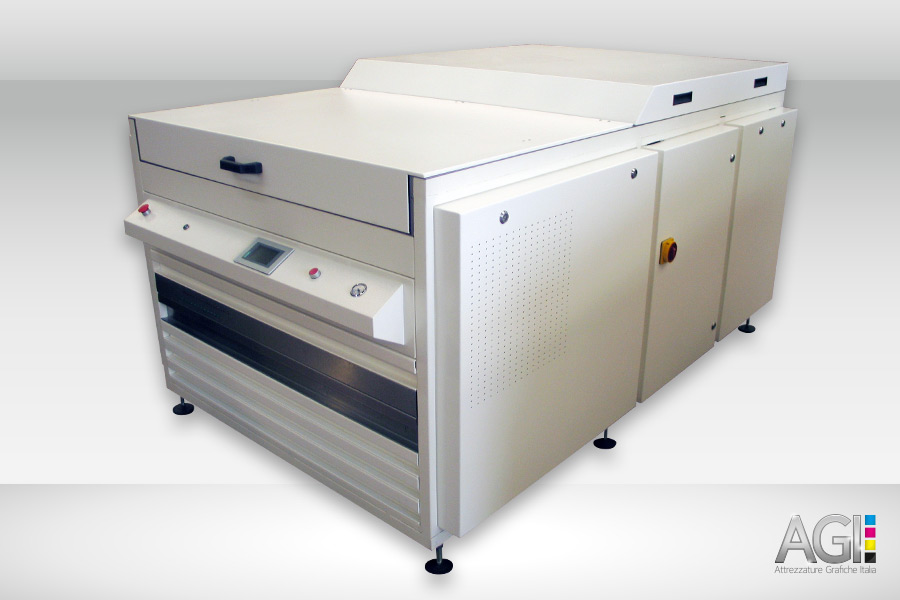

Combi Flexo 30/40
