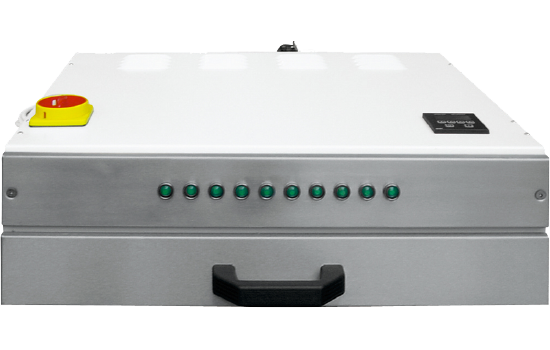

UVC SECTION
FEATURES
- Post-exposure with UVC compart (excepted for the model A2)
- Equipped with smoke exhaust
- Stainless steel drawer
- Timer
- All safety measures taken against direct irradiations of the UVC Lamps
| A2 | A1 | 30/40 | 36/47 | 42/60 | |
| Exposure size (mm) | 530x760 | 710x890 | 780x1030 | 920x1220 | 1070x1530 |
| Exposure size (inches) | 20''x29'' | 27''x35'' | 30''x40'' | 36''x48'' | 42''x60'' |
| Fans | 1 | 1 | 2 | 2 | 2 |
| Wattage (kW) | 1 | 2 | 2 | 2,5 | 4 |
| Electrical supply | 230V MONO 60Hz | ||||
| UVA lamps | - | 13x60W 10R L. 1200 | 14x60W 10R L. 1200 | 17x80W 10R L. 1500 | 28x60W 10R L. 1200 |
| UVC lamps | 12x30W L. 894 | 12x36W L. 1200 | 13x36W L. 1200 | 16x60W L. 1500 | 27x60W L. 1500 |
