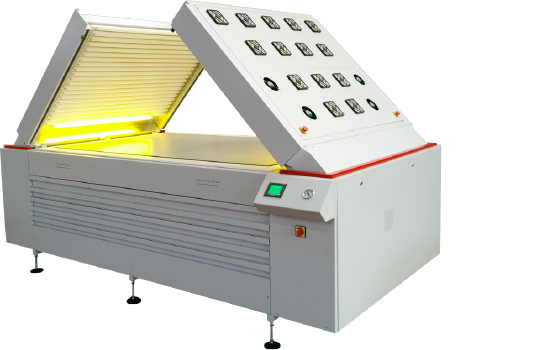

EDF FLEXO-SOLVENT/FLEXO-WATER 52/80 DRAWBRIDGE

FEATURES

  • 9 channel LCD controller of each working step: Back exposure, Main exposure time, Post-exposure time, Anti-tack exposure time
  • Lamp life time counter for main/post/anti-tack unit
  • Independent dryer time for each of the four drawers
  • Dryer temperature control
  • Leds of “lamp on” for each exposure unit
  • Suction unit for anti-tack/post-exposure section and suction dryer unit in Flexo-Solvent type
  • Working plane height cms 90
  • Automatic opening and closing
  • Light integrator, exposure lamps temperature control, main exposure frame with cooling system on request.
  52/80 DRAWBRIDGE
Max plate size (mm) 1320x2030
Max plate size (inches) 51''x79''
UVA exposure lamps 42x80W 10R L. 1500
UVC lamps 35x60W L. 1500
UVA post-exposure lamps 36x80W 10R L. 1500
Dryer drawers 4
Wattage (kW) 15
Electrical supply 230V (3PH+GND) 60Hz
400V (3PH+N+GND) 50Hz
Operation noise (dB) <65
Exhaust connection (mm) 80
Compressed air connection Ø10
Overall size
(LxWxH) (cm)
318x190x113
Weight (kgs) 830
