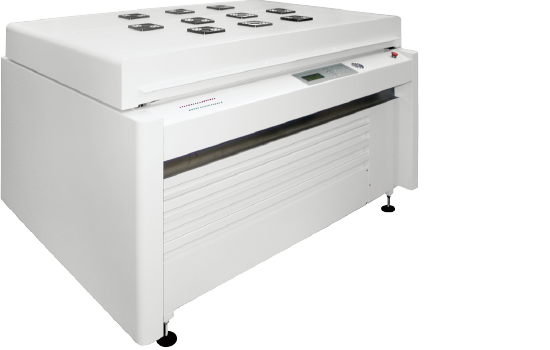

EDF FLEXO-SOLVENT/FLEXO-WATER
FEATURES
- 9 channel LCD controller of each working step: Back exposure, Main exposure time, Post-exposure time, Anti-tack exposure time
- Lamp life time counter for main/post/anti-tack unit
- Independent dryer time for each of the four drawers
- Dryer temperature control
- Leds of “lamp on” for each exposure unit
- Suction unit for anti-tack/post-exposure section and suction dryer unit in Flexo-Solvent type
- Working plane height cms 90
- Light integrator, exposure lamps temperature control, main exposure frame with cooling system on request.
| 30/40 | 36/47 | 42/60 | |
| Max plate size (mm) | 780x1030 | 920x1320 | 1070x1530 |
| Max plate size (inches) | 30''x40'' | 36''x51'' | 42''x60'' |
| UVA exposure lamps | 16x60W 10R L. 1200 | 21x80W 10R L. 1500 | 24x100W 10R L. 1800 |
| UVC lamps | 13x36W L. 1200 | 16x60W L. 1500 | 27x36W L. 1200 |
| UVA post-exposure lamps | 14x60W 10R L. 1200 | 17x80W 10R L. 1500 | 28x60W 10R L. 1200 |
| Dryer drawers | 4 | 4 | 4 |
| Wattage (kW) | 8,2 | 10,5 | 12 |
| Operation noise (dB) | <65 | <65 | <65 |
| Exhaust connection (mm) | 80 | 80 | 80 |
| Electrical supply | 230V (3PH+GND) 60Hz 400V (3PH+N+GND) 50Hz |
||
| Overall size (LxWxH) (cm) |
183x155x109 | 183x155x109 | 216x190x113 |
| Weight (kgs) | 620 | 620 | 700 |
